TMPRO Software module 87

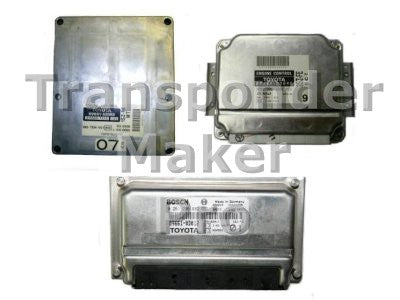

– Toyota, Lexus ECU Bosch, Fujitsu, Denso
Memory device is serial eeprom, which can be 24c02 or 25c020 or 95c040 or 95c080 or 93c56 or 93c86 – all 8 pin SMD package.
Expected file size for 24c02 , 25c020 and 93c56 is 256 bytes, for 95c040 is 512 bytes, for 25080 is 1024 bytes and for 93c86 is 2048 bytes.
Use JMA TPX1 or CN1 or K-JMD or Errebi TX1 transponder.
Written transponder is ready programmed to start the vehicle.
Vehicles equipped with this unit:
Toyota: RAV4, Corolla, Sienna, Yaris, MR2
Lexus: IS200, IS300, GS300
